Motor Penggerak Frekuensi Variabel 2P Ke 12P Efisiensi Tinggi
| Place of Origin | China |
|---|---|
| Nama merek | Simo Motor |
| Sertifikasi | 3C,CE,GOST,CNAS,UL,QMS,EMS |
| Model Number | YVFE4 Series High Efficiency Low Voltage Variable Frequency Three-phase Asynchronous Motor |
| Minimum Order Quantity | 1 |
| Packaging Details | Solid Wood Package |
| Delivery Time | 50-60 Working Days |
| Payment Terms | T/T |
Detail produk
| Jenis | Motor Penggerak Frekuensi Variabel | Bingkai | H80-H355 |
|---|---|---|---|
| Voltase | 380V,400V,415V,660V,690V,220/380V,380/660V,400/690V | Tingkat Efisiensi | IEC 60034-30 Kelas 1 (IE4) |
| Kelas Perlindungan | IP55 | Kekuatan | 0.18kW-315kW |
| Standar | JB, IE | Jenis pendingin | IC 416 |
| Jenis pemasangan | IM B3, IMB35, IM B5, IM V1 | ||
| Cahaya Tinggi | Motor Penggerak Frekuensi Variabel 12P,Motor Penggerak Frekuensi Variabel 2P,motor vfd 12P |
||
Deskripsi Produk
Motor Penggerak Frekuensi Variabel 2P Ke 12P Efisiensi Tinggi
Keuntungan Teknis
Motor seri YVFE4 adalah motor asinkron tiga fase yang mengatur kecepatan dan frekuensi variabel yang berasal dari motor seri YE4, yang dapat sepenuhnya menggantikan YJTG, YVF2, YVFE2, YVFE3-seri tegangan rendah frekuensi variabel yang mengatur kecepatan motor asinkron tiga fase.
Fitur Motor Penggerak Frekuensi Variabel
Sistem pengatur kecepatan menghubungkan konverter frekuensi dan seri YVFE3 efisiensi tinggi variabel kecepatan pengatur kecepatan motor asinkron tiga fase, dibandingkan dengan sistem pengatur kecepatan lainnya, memiliki keuntungan dari efek penghematan energi yang signifikan, kinerja pengaturan kecepatan yang baik, rentang kecepatan yang lebar, rendah kebisingan, getaran rendah, peralatan mudah dengan berbagai inverter di dalam dan luar negeri.
Kondisi Operasi
Suhu sekitar adalah -15℃~+40℃;Ketinggian 1KM;dan kelembaban udara rata-rata bulanan 90% (Jika suhu 25℃).
Aplikasi Motor Penggerak Frekuensi Variabel
Biasa digunakan pada kipas angin, pompa, kompresor dan peralatan pemanas.

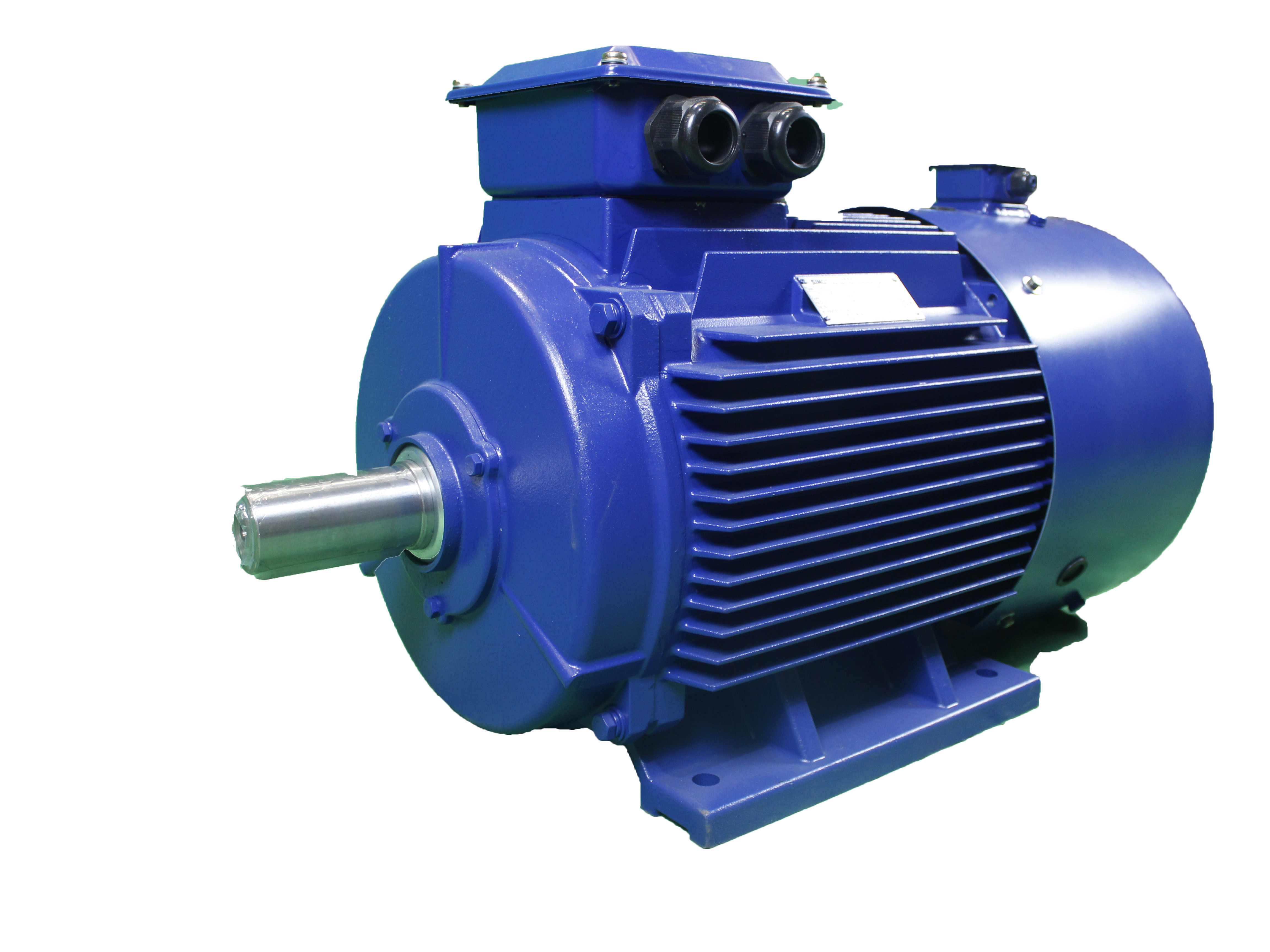

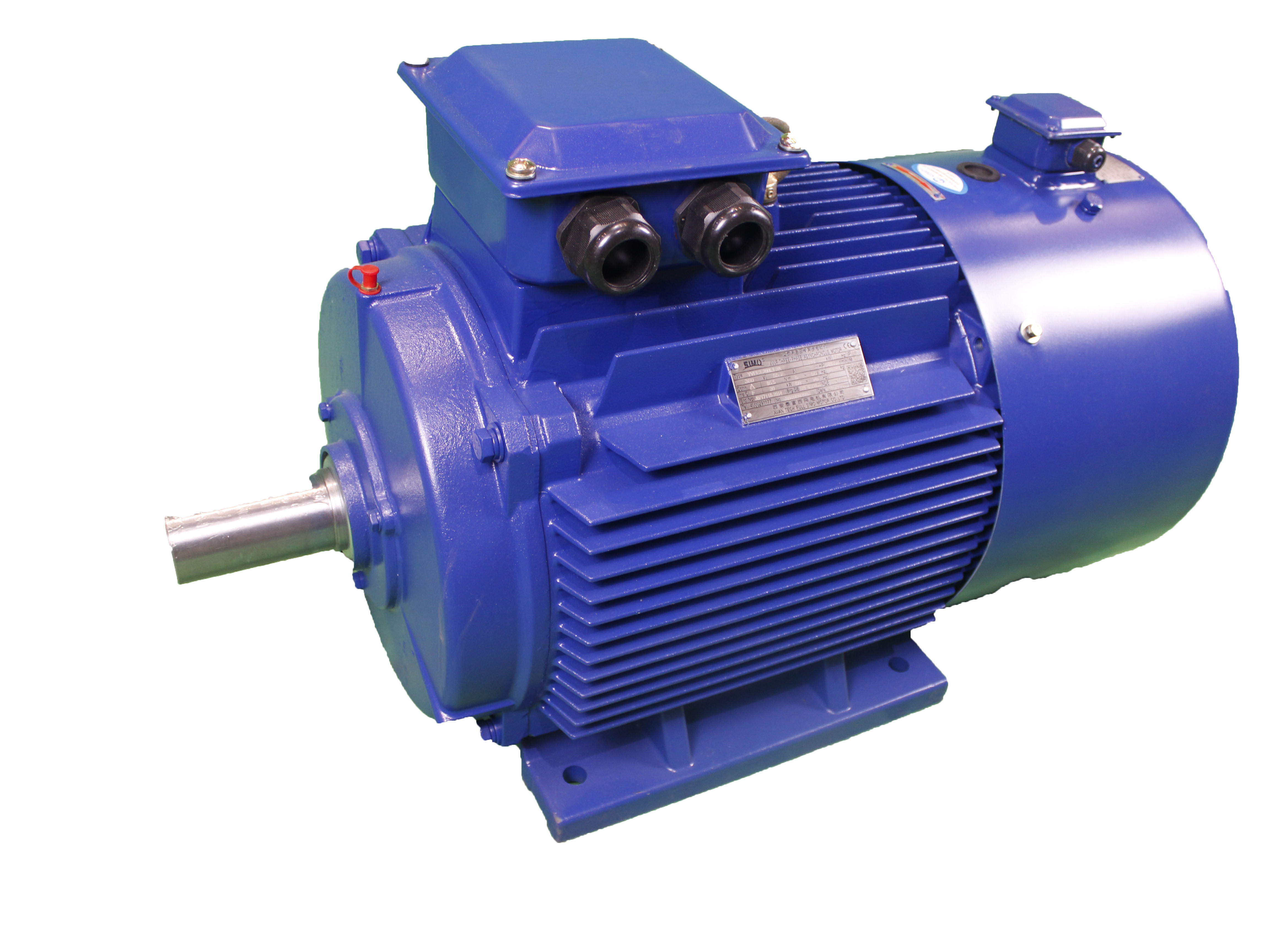

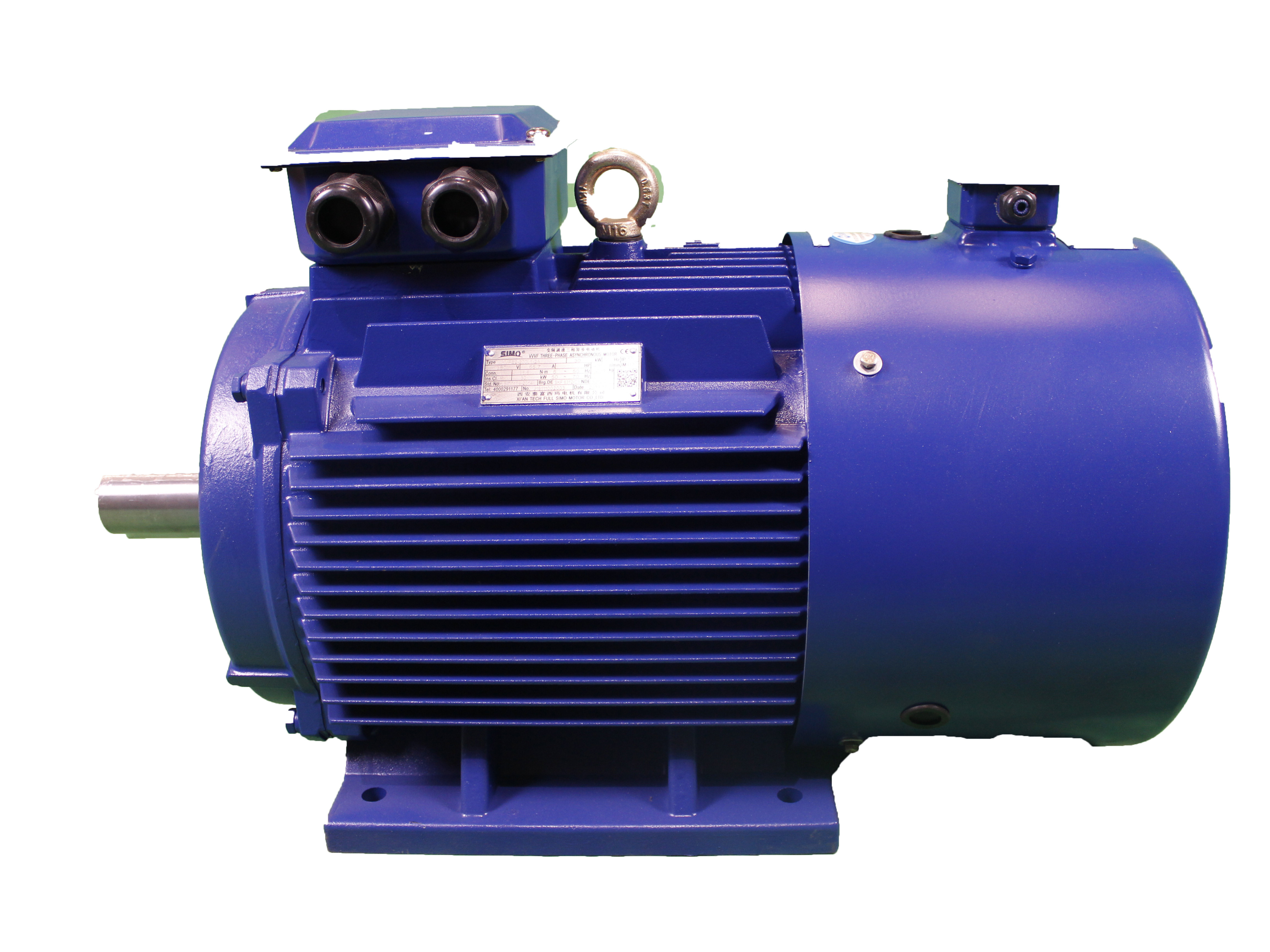

Tampilan Motor Penggerak Frekuensi Variabel
Tersedia Jenis YVFE4
|
Jenis |
Nilai daya kW |
Nilai Saat Ini SEBUAH |
Kecepatan r/mnt |
Efisiensi % |
Faktor kekuatan Cosφ |
Torsi terkunci |
Terkunci saat ini |
Maks.torsi |
Dinilai torsi N•m |
Momen inersia kg•m2 |
Kebisingan Tanpa Beban dB(A) |
Bobot kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dinilai torsi |
Dinilai Saat ini |
Nilai Torsi |
||||||||||
| Kecepatan Sinkron 3000r/mnt | ||||||||||||
| YVFE4-80M1-2 | 0,75 | 1.6 | 2880 | 83.5 | 0.83 | 2.2 | 8.5 | 2.3 | 2.4 | -- | 79 | -- |
| YVFE4-80M2-2 | 1.1 | 3.5 | 2880 | 85.2 | 0.83 | 2.2 | 8.5 | 2.3 | 3.5 | -- | 79 | -- |
| YVFE4-90S-2 | 1.5 | 3.1 | 2890 | 86,5 | 0,85 | 2.2 | 9.0 | 2.3 | 4.8 | -- | 84 | -- |
| YVFE4-90L-2 | 2.2 | 4.4 | 2890 | 88.0 | 0,86 | 2.2 | 9.0 | 2.3 | 7.0 | -- | 84 | -- |
| YVFE4-100L-2 | 3 | 5.9 | 2910 | 89.1 | 0,87 | 2.2 | 9.5 | 2.3 | 9.6 | -- | 91 | -- |
| YVFE4-112M-2 | 4 | 7.7 | 2910 | 90.0 | 0,88 | 2.2 | 9.5 | 2.3 | 12.8 | -- | 91 | -- |
| YVFE4-132S1-2 | 5.5 | 10.4 | 2945 | 90.9 | 0,88 | 2.0 | 9.5 | 2.3 | 17.5 | 0,02 | 96 | 78 |
| YVFE4-132S2-2 | 7.5 | 14.0 | 2940 | 91.7 | 0,89 | 2.0 | 9.5 | 2.3 | 23.9 | 0,03 | 96 | 84 |
| YVFE4-160M1-2 | 11 | 20.3 | 2950 | 92.6 | 0,89 | 2.0 | 9.5 | 2.3 | 35.0 | 0,06 | 98 | 141 |
| YVFE4-160M2-2 | 15 | 27.4 | 2950 | 93.3 | 0,89 | 2.0 | 9.5 | 2.3 | 47.8 | 0,08 | 98 | 154 |
| YVFE4-160L-2 | 18.5 | 34.2 | 2950 | 93.7 | 0,89 | 2.0 | 9.5 | 2.3 | 58.9 | 0,09 | 98 | 173 |
| YVFE4-180M-2 | 22 | 40.0 | 2965 | 94.0 | 0,89 | 2.0 | 9.5 | 2.3 | 70.0 | 0.13 | 100 | 213 |
| YVFE4-200L1-2 | 30 | 54.2 | 2970 | 94.5 | 0,89 | 2.0 | 9.0 | 2.3 | 95.5 | 0,22 | 101 | 277 |
| YVFE4-200L2-2 | 37 | 66.6 | 2975 | 94.8 | 0,89 | 2.0 | 9.0 | 2.3 | 117,8 | 0,26 | 101 | 297 |
| YVFE4-225M-2 | 45 | 80.9 | 2975 | 95.0 | 0,89 | 2.0 | 9.0 | 2.3 | 143.3 | 0.34 | 103 | 350 |
| YVFE4-250M-2 | 55 | 98.5 | 2980 | 95.3 | 0,89 | 2.0 | 9.0 | 2.3 | 175.1 | 0,76 | 106 | 504 |
| YVFE4-280S-2 | 75 | 133.8 | 2980 | 95.6 | 0,89 | 1.8 | 8.5 | 2.3 | 238.8 | 0,92 | 108 | 590 |
| YVFE4-280M-2 | 90 | 160.4 | 2980 | 95.8 | 0,89 | 1.8 | 8.5 | 2.3 | 286,5 | 1.11 | 108 | 677 |
| YVFE4-315S-2 | 110 | 195.6 | 2975 | 96.0 | 0,89 | 1.8 | 8.5 | 2.3 | 350.2 | 1.58 | 109 | 951 |
| YVFE4-315M-2 | 132 | 234.2 | 2975 | 96.2 | 0,89 | 1.8 | 8.5 | 2.3 | 420.2 | 1.78 | 109 | 975 |
| YVFE4-315L1-2 | 160 | 283.6 | 2975 | 96.3 | 0,89 | 1.8 | 8.5 | 2.2 | 509.3 | 2.04 | 115 | 1048 |
| YVFE4-315L-2 | 185 | 327.6 | 2975 | 96.4 | 0,89 | 1.8 | 8.5 | 2.2 | 588.9 | 2.27 | 115 | 995 |
| YVFE4-315L2-2 | 200 | 353.8 | 2975 | 96,5 | 0,89 | 1.8 | 8.5 | 2.2 | 636.7 | 2.27 | 115 | 1113 |
| YVFE4-355M1-2 | 220 | 389.2 | 2985 | 96,5 | 0,90 | 1.6 | 8.5 | 2.2 | 700.3 | 2.86 | 115 | 1530 |
| YVFE4-355M-2 | 250 | 432.6 | 2985 | 96,5 | 0,91 | 1.6 | 8.5 | 2.2 | 795.8 | 3.27 | 115 | 1580 |
| YVFE4-355L1-2 | 280 | 484.5 | 2985 | 96,5 | 0,91 | 1.6 | 8.5 | 2.2 | 891.3 | 3.83 | 115 | 1727 |
| YVFE4-355L-2 | 315 | 545.0 | 2985 | 96,5 | 0,91 | 1.6 | 8.5 | 2.2 | 1003 | 4.03 | 115 | 1740 |
| Kecepatan Sinkron 1500 r/mnt | ||||||||||||
| YVFE4-80M-4 | 0,75 | 1.8 | 1435 | 85.7 | 0,74 | 2.3 | 8.5 | 2.3 | 4.8 | -- | 73 | -- |
| YVFE4-90S-4 | 1.1 | 2.6 | 1440 | 87.2 | 0,75 | 2.3 | 8.5 | 2.3 | 7.0 | -- | 76 | -- |
| YVFE4-90L-4 | 1.5 | 3.4 | 1440 | 88.2 | 0,76 | 2.3 | 9.0 | 2.3 | 9.6 | -- | 76 | -- |
| YVFE4-100L1-4 | 2.2 | 4.7 | 1450 | 89.5 | 0,79 | 2.3 | 9.0 | 2.3 | 14.0 | -- | 79 | -- |
| YVFE4-100L2-4 | 3 | 6.3 | 1450 | 90.4 | 0,80 | 2.3 | 9.5 | 2.3 | 19.0 | -- | 79 | -- |
| YVFE4-112M-4 | 4 | 8.3 | 1450 | 91.1 | 0,80 | 2.2 | 9.5 | 2.3 | 25.5 | -- | 80 | -- |
| YVFE4-132S-4 | 5.5 | 11.4 | 1470 | 91.9 | 0,80 | 2.0 | 9.5 | 2.3 | 35.0 | 0,06 | 86 | 89 |
| YVFE4-132M-4 | 7.5 | 15.2 | 1470 | 92.6 | 0,81 | 2.0 | 9.5 | 2.3 | 47.8 | 0,07 | 86 | 101 |
| YVFE4-160M-4 | 11 | 21.6 | 1475 | 93.3 | 0.83 | 2.0 | 9.5 | 2.3 | 70.0 | 0.13 | 90 | 151 |
| YVFE4-160L-4 | 15 | 28.9 | 1475 | 93.9 | 0,84 | 2.0 | 9.5 | 2.3 | 95.5 | 0.17 | 90 | 163 |
| YVFE4-180M-4 | 18.5 | 35.1 | 1480 | 94.2 | 0,85 | 2.0 | 9.5 | 2.3 | 117,8 | 0,23 | 91 | 214 |
| YVFE4-180L-4 | 22 | 41.6 | 1480 | 94.5 | 0,85 | 2.0 | 9.5 | 2.3 | 140.1 | 0,25 | 91 | 229 |
| YVFE4-200L-4 | 30 | 56,5 | 1485 | 94.9 | 0,85 | 2.0 | 9.0 | 2.3 | 191.0 | 0,45 | 92 | 282 |
| YVFE4-225S-4 | 37 | 69.5 | 1485 | 95.2 | 0,85 | 2.0 | 9.0 | 2.3 | 235.6 | 0,64 | 94 | 352 |
| YVFE4-225M-4 | 45 | 84.3 | 1485 | 95.4 | 0,85 | 2.0 | 9.0 | 2.3 | 286,5 | 0,74 | 94 | 365 |
| YVFE4-250M-4 | 55 | 101,5 | 1485 | 95.7 | 0,86 | 2.0 | 9.0 | 2.3 | 350.1 | 1.05 | 96 | 458 |
| YVFE4-280S-4 | 75 | 136.4 | 1490 | 96.0 | 0,87 | 2.0 | 8.5 | 2.3 | 477.2 | 1.75 | 99 | 631 |
| YVFE4-280M-4 | 90 | 161.7 | 1490 | 96.1 | 0,88 | 2.0 | 8.5 | 2.3 | 573.0 | 2.08 | 99 | 700 |
| YVFE4-315S-4 | 110 | 195.0 | 1485 | 96.3 | 0,89 | 1.8 | 8.5 | 2.2 | 700.3 | 3.33 | 105 | 885 |
| YVFE4-315M-4 | 132 | 233.8 | 1485 | 96.4 | 0,89 | 1.8 | 8.5 | 2.2 | 840.4 | 3.71 | 105 | 975 |
| YVFE4-315L1-4 | 160 | 279.6 | 1485 | 96.6 | 0,90 | 1.8 | 8.5 | 2.2 | 1019 | 4.31 | 109 | 1055 |
| YVFE4-315L-4 | 185 | 323.0 | 1485 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1178 | 5.13 | 109 | 1159 |
| YVFE4-315L2-4 | 200 | 349.2 | 1485 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1273 | 5.13 | 109 | 1159 |
| YVFE4-355M1-4 | 220 | 384.1 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1401 | 9.25 | 109 | 1617 |
| YVFE4-355M-4 | 250 | 436,5 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1592 | 9,99 | 109 | 1816 |
| YVFE4-355L2-4 | 280 | 488.8 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1783 | 10.64 | 109 | 1830 |
| YVFE4-355L-4 | 315 | 549.9 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 2006 | 10.91 | 109 | 1900 |
| Kecepatan Sinkron 1000 putaran/menit | ||||||||||||
| YVFE4-90S-6 | 0,75 | 2.0 | 950 | 82,7 | 0,70 | 2.1 | 7.5 | 2.1 | 7.2 | -- | 72 | -- |
| YVFE4-90L-6 | 1.1 | 2.8 | 950 | 84.5 | 0,70 | 2.1 | 7.5 | 2.1 | 10.5 | -- | 72 | -- |
| YVFE4-100L-6 | 1.5 | 3.7 | 955 | 85.9 | 0,71 | 2.1 | 7.5 | 2.1 | 14.3 | -- | 76 | -- |
| YVFE4-112M-6 | 2.2 | 5.5 | 955 | 87.4 | 0,71 | 2.0 | 7.5 | 2.1 | 21.0 | -- | 80 | -- |
| YVFE4-132S-6 | 3 | 7.2 | 970 | 88.6 | 0,71 | 2.0 | 7.5 | 2.1 | 28.7 | 0,04 | 84 | 64 |
| YVFE4-132M1-6 | 4 | 9.4 | 970 | 89.5 | 0.72 | 2.0 | 8.0 | 2.1 | 38.2 | 0,06 | 84 | 79 |
| YVFE4-132M2-6 | 5.5 | 12.8 | 970 | 90.5 | 0.72 | 2.0 | 8.0 | 2.1 | 52.5 | 0,07 | 84 | 90 |
| YVFE4-160M-6 | 7.5 | 16.4 | 980 | 91.3 | 0,76 | 2.0 | 8.0 | 2.1 | 71.6 | 0.14 | 85 | 145 |
| YVFE4-160L-6 | 11 | 23.5 | 980 | 92.3 | 0,77 | 2.0 | 8.5 | 2.1 | 105.1 | 0.19 | 85 | 165 |
| YVFE4-180L-6 | 15 | 30.7 | 985 | 92.9 | 0,80 | 2.0 | 8.5 | 2.1 | 143.3 | 0.31 | 88 | 192 |
| YVFE4-200L1-6 | 18.5 | 37.6 | 985 | 93.4 | 0,80 | 2.0 | 8.5 | 2.3 | 176.7 | 0,44 | 88 | 264 |
| YVFE4-200L2-6 | 22 | 44.0 | 985 | 93.7 | 0,81 | 2.0 | 8.5 | 2.1 | 210.1 | 0,55 | 88 | 291 |
| YVFE4-225M-6 | 30 | 59.0 | 990 | 94.2 | 0.82 | 2.0 | 8.5 | 2.1 | 286,5 | 0.82 | 89 | 322 |
| YVFE4-250M-6 | 37 | 71.7 | 990 | 94.5 | 0.83 | 2.0 | 8.3 | 2.1 | 353.3 | 1.43 | 89 | 437 |
| YVFE4-280S-6 | 45 | 86.9 | 990 | 94.8 | 0.83 | 2.0 | 8.5 | 2.0 | 429.8 | 2.22 | 93 | 549 |
| YVFE4-280M-6 | 55 | 104.6 | 990 | 95.1 | 0,84 | 2.0 | 8.5 | 2.0 | 525.3 | 2.68 | 93 | 617 |
| YVFE4-315S-6 | 75 | 143.2 | 990 | 95.4 | 0,84 | 1.6 | 8.0 | 2.0 | 716.3 | 3.91 | 98 | 826 |
| YVFE4-315M-6 | 90 | 168.3 | 990 | 95.6 | 0,85 | 1.6 | 8.0 | 2.0 | 859,5 | 4.42 | 98 | 910 |
| YVFE4-315L1-6 | 110 | 205.2 | 990 | 95.8 | 0,85 | 1.6 | 8.0 | 2.0 | 1051 | 5.50 | 99 | 1009 |
| YVFE4-315L2-6 | 132 | 242.9 | 990 | 96.0 | 0,86 | 1.6 | 8.0 | 2.0 | 1261 | 6.81 | 99 | 1124 |
| YVFE4-355M1-6 | 160 | 293.8 | 990 | 96.2 | 0,86 | 1.6 | 8.0 | 2.0 | 1528 | 10.63 | 99 | 1632 |
| YVFE4-355M-6 | 185 | 339.8 | 990 | 96.2 | 0,86 | 1.6 | 8.0 | 2.0 | 1767 | 11.33 | 99 | 1670 |
| YVFE4-355M2-6 | 200 | 366.9 | 990 | 96.3 | 0,86 | 1.6 | 8.0 | 2.0 | 1910 | 12.15 | 99 | 1732 |
| YVFE4-355L1-6 | 220 | 403.6 | 990 | 96.3 | 0,86 | 1.6 | 8.0 | 2.0 | 2101 | 14.25 | 99 | 1820 |
| YVFE4-355L-6 | 250 | 457.7 | 990 | 96,5 | 0,86 | 1.6 | 8.0 | 2.0 | 2387 | 15.77 | 99 | 1820 |
| Kecepatan Sinkron 750 r/mnt | ||||||||||||
| YVFE4-132S-8 | 2.2 | 5.7 | 710 | 84.5 | 0,70 | 1.8 | 7.5 | 2.0 | 28.2 | 0,05 | 84 | 90 |
| YVFE4-132M-8 | 3 | 7.6 | 710 | 85.9 | 0,70 | 1.8 | 7.8 | 2.0 | 38.2 | 0,07 | 84 | 97 |
| YVFE4-160M1-8 | 4 | 9.8 | 720 | 87.1 | 0,71 | 1.8 | 7.9 | 2.0 | 50.9 | 0.12 | 85 | 163 |
| YVFE4-160M2-8 | 5.5 | 13.1 | 720 | 88.3 | 0.72 | 1.8 | 8.1 | 2.0 | 70.0 | 0.16 | 85 | 172 |
| YVFE4-160L-8 | 7.5 | 17.2 | 720 | 89.3 | 0,74 | 1.8 | 7.8 | 2.0 | 95.5 | 0.18 | 85 | 181 |
| YVFE4-180L-8 | 11 | 25.0 | 730 | 90.4 | 0,74 | 1.8 | 7.9 | 2.0 | 140.1 | 0.36 | 88 | 266 |
| YVFE4-200L-8 | 15 | 33.3 | 730 | 91.2 | 0,75 | 1.8 | 8.0 | 2.0 | 191.0 | 0,52 | 88 | 266 |
| YVFE4-225S-8 | 18.5 | 40.9 | 730 | 91.7 | 0,75 | 1.8 | 8.1 | 2.0 | 235.6 | 0,71 | 89 | 285 |
| YVFE4-225M-8 | 22 | 47.8 | 730 | 92.1 | 0,76 | 1.8 | 8.3 | 2.0 | 280.1 | 0,88 | 89 | 337 |
| YVFE4-250M-8 | 30 | 63.9 | 730 | 92,7 | 0,77 | 1.8 | 7.9 | 2.0 | 382.0 | 1.17 | 91 | 408 |
| YVFE4-280S-8 | 37 | 77.4 | 735 | 93.1 | 0,78 | 1.8 | 7.9 | 2.0 | 471.1 | 1.98 | 93 | 671 |
| YVFE4-280M-8 | 45 | 93.9 | 735 | 93.4 | 0,78 | 1.8 | 7.9 | 2.0 | 573.0 | 2.35 | 93 | 684 |
| YVFE4-315S-8 | 55 | 111.5 | 740 | 93.7 | 0,80 | 1.6 | 8.2 | 2.0 | 700.3 | 3.93 | 98 | 1015 |
| YVFE4-315M-8 | 75 | 151.2 | 740 | 94.2 | 0,80 | 1.6 | 7.6 | 2.0 | 955.0 | 5.38 | 98 | 1115 |
| YVFE4-315L1-8 | 90 | 178.8 | 740 | 94.4 | 0,81 | 1.6 | 7.7 | 2.0 | 1146 | 6.40 | 99 | 1175 |
| YVFE4-315L2-8 | 110 | 217.9 | 740 | 94.7 | 0,81 | 1.6 | 7.7 | 2.0 | 1401 | 7.51 | 99 | 1295 |
| YVFE4-355M1-8 | 132 | 260.9 | 740 | 94.9 | 0,81 | 1.6 | 7.7 | 2.0 | 1681 | 11.80 | 99 | 1620 |
| YVFE4-355M2-8 | 160 | 311.7 | 740 | 95.1 | 0.82 | 1.6 | 7.7 | 2.0 | 2037 | 14.39 | 99 | 1720 |
| YVFE4-355L3-8 | 185 | 360,5 | 740 | 95.4 | 0.82 | 1.6 | 7.7 | 2.0 | 2356 | 16.55 | 99 | 1780 |
| YVFE4-355L-8 | 200 | 388.5 | 740 | 95.4 | 0,81 | 1.6 | 7.7 | 2.0 | 2547 | 18.71 | 99 | 1820 |
| Kecepatan Sinkron 600 r/mnt | ||||||||||||
| YVFE4-315S-10 | 45 | 98.0 | 590 | 93.0 | 0,75 | 1.5 | 6.2 | 2.0 | 716.2 | 3.93 | 98 | 1015 |
| YVFE4-315M-10 | 55 | 119,8 | 590 | 93.0 | 0,75 | 1.5 | 5.8 | 2.0 | 875.4 | 4.78 | 98 | 1115 |
| YVFE4-315L1-10 | 75 | 159.9 | 590 | 93.8 | 0,76 | 1.5 | 5.9 | 2.0 | 1194 | 6.40 | 99 | 1175 |
| YVFE4-315L2-10 | 90 | 189.3 | 590 | 93.8 | 0,77 | 1.5 | 6.0 | 2.0 | 1433 | 7.51 | 99 | 1295 |
| YVFE4-355M-10 | 90 | 188.5 | 590 | 93.3 | 0,77 | 1.45 | 6.0 | 2.0 | 1433 | 9.80 | 99 | 1500 |
| YVFE4-355M1-10 | 110 | 227.5 | 590 | 93.3 | 0,78 | 1.45 | 6.0 | 2.0 | 1433 | 11.82 | 99 | 1520 |
| YVFE4-355M2-10 | 132 | 272.1 | 590 | 93.7 | 0,78 | 1.45 | 6.0 | 2.0 | 1751 | 14.42 | 99 | 1620 |
| YVFE4-355L-10 | 160 | 329.8 | 590 | 93.7 | 0,78 | 1.45 | 6.0 | 2.0 | 2547 | 17.88 | 99 | 1720 |
